Basic using Dedicated to the circumferential surface of red wine bottle label, can be attached to a single standard and double standard, are back double standard spacing can be flexibly adjusted; possess conical bottle labeling function; optional peripheral location detection device can achieve the specified position in the circumferential surface labeling. Application Applicable Tags: adhesive label / sticker film. Applicable products: Round bottle with diameter between 25mm ~ 90mm Industry: Widely used in wine, medicine, food, toys, cosmetics, and other industries. Application examples: Bordeaux bottle labeling, Tatu bottle labeling, labeling Remy, cylindrical bottle of red double standard labeling and so…

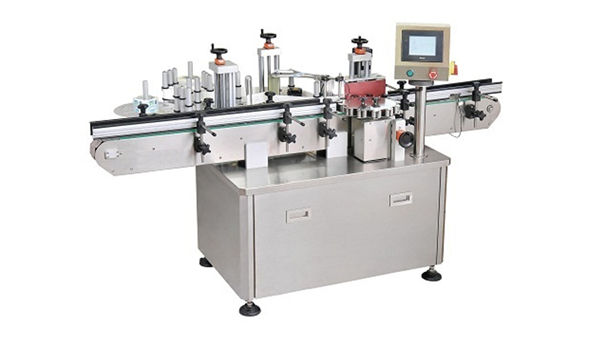

Product Introduction 1. The Application Label differnet size round objects in food, medicine, daily chemical and other light industries. it will do these works automaticlly:arranging bottles → feeding labels → separated labels → sticking → rolling and pressing labels. 2. Equipment each component Electrical cabinet,Conveying belt ,Separate bottle device,Roll label device,Brush label device,labeling engine,Operation system and control system ; Round Bottle  Labeling Machine Videos Product Characteristics Equipment function characteristics 1) Control system: Use SIEMENS PLC control system, with high stable operation and low failure rate. 2) Operation system:The main machine control 7 inch touch screen, directly visual interface easy operation,…

Main Features 1.The whole electrical control system is controlled by PLC. The touch screen is in Chinese and English language. 2. It has date storage capacity and is able to store 30 groups of parameters and name for different programs. 3.Conveyor belt, bottle separator, positioning rotation mechanism adopt independent adjustable motor drive. The labeling head can be multi-direction. 4.The automatic alarm will give a warning when the labels remain 200 pieces.Automatic alarm of using up the labels, and machine stops working. 5. It applies to various products. The label position and barriers can be adjusted according to the bottle size.…

Specifications 1.Automatic operation 2.Wide application 3.Sturdy label 4.ISO Bottle Labeling Machine For Sale Vertical Bottle Labeling Machine is our new designed labeling machine which owns advanced micro computer – PLC( electronic optical fiber programmable logic controller) to come true high speed and stable function. Touched screen can adjust parameter to help workers adjust and ensure data any time. And the labelling processing is clean . The label is beautiful and tight . Round Bottle Labeling Machine Videos specification of Count Bottle Labeling Machine Product Bottle Labeling Machine For Sale Item No. OR-RL-001 Description Full automatic operation Size Available 2800*1300*1850mm Color Silver Power…

Product Description 1. The Scope of Application Label differnet size round objects in food, medicine, daily chemical and other light industries. 2. Equipment composition Electrical cabinet,Conveying mechanism,Separate bottle device,Roll label device,Brush label device,1# labeling engine,Operation system and control system ; 3. Equipment function characteristics 1) Control system: Use SIEMENS brand PLC control system, with high stable operation and extremely low failure rate. 2) Operation system:The man machine control 7 inch touch screen, directly visual interface easy operation, with Chinese and English two kinds language, also rich withthe help function and fault display function. 3) Check system: Use German LEUZE check…

Product Description 1. We’re the first to use high speed servo labeling system in Asia in 1980. 2. Applicable to various of bottles, such as flat ,taper,round, square bottles, etc. 3. High-precision labeling system, with labeling accuracy ≤±1mm. 4. Stable speed : 0-300 bottles / min. 5.Correction mechnism of synchronous chain to ensure precision position after correcting bottles. 6. Upper pressure mechanism with digital display, and big adjustment range, it's suitable for various of specification bottles. 7.Universal adjustment mechanism for labeling head,allowing perfect labeling for all types of taper bottles. 8. Whole machine adopts SUS304 stainless steel and A6061high-strength aluminum…

Product Description of Full Automatic round bottle labeling machine Application automatic labeling machine is suit for round,flat,square,cone shape products in Cosmetic,food,pharmaceutical and other light industries,labeling on one size one two sides all ok as client need. Features 1.The whole machine and spare parts use international standard SUS304 stainless steel imported alloy material.double anodic oxidation treatment,with high corrosion resistance and never rust,suit for any production environment. 2.German import labeling engine is optional,advanced self-adaption labeling control system,reduce and simplify operating and adjusting,improve efficiency,After change products or label ,made simply adjustment is ok,do not have much requirements for worker skill. 3.Separate bottle device…

Main Features 1.Suitable for labeling round bottle in different sizes.2. High quality all stainless steel constructions 2. Labeling bottle adjustable, meeting different before and after the workpiece labeling needs. 3.Efficiency is as high as 50 times/minutes. 4.Composed by main body, sending paper, receiving paper, bottle orientation etc parts. 5.Putting the bottle to orientation part by manual and fix the bottle. 6.Labeling affect is perfect, no creases, no bubble, grade high, to increase product competitiveness. 7.The brand PLC and sensor etc electronic components, performance more stable. 8.Modular design, convenient maintenance and repair costs low. 9.High accuracy and high speed, dispensing &…

automatic bottle sticker labeling machine for round and square 1) Applicable to label whole curved surfaces or half curved surfaces on rotundities that can’t stand on their on their own fet with short diameter; 2) Advanved touch human-compater interface which is easy and intuitionistic to operate and has complete functions including abundant online help; 3) The design of special tilting loading material method and conveying by idler wheel makes the objects to labe to be located automatically; 4) Automatic photoelectric detection functions,such as cancelling labeling without objects there,stopping running or raising an alarm without labels to use to avoid omitting…

Product Description 1. The Scope of Application The model PLM-DLM104 Labeling machine suit for differnet size round shape products, such as bottle, jars ,cans in food, medicine, daily chemical and other light industries. 2. Equipment composition Electrical cabinet,Conveying mechanism,Separate bottle device,Roll label device,Brush label device,1# labeling engine,Operation system and control system ; 3. Equipment function characteristics 1) Control system: Use SIEMENS brand PLC control system, with high stable operation and extremely low failure rate. 2) Operation system:The man machine control 7 inch touch screen, directly visual interface easy operation, with Chinese and English two kinds language, also rich withthe help…

Semi-automatic Round Bottle Labeling Machine Applications It applies to round bottles and small awl-shaped bottle such as oral solution, xylitol, shampoo bottle and cosmetic bottles. Can realize single sticker labeling and double sticker labeling which distance can be adjusted flexibly; widely used in food, medicine, daily chemical, electronic, metal, plastics and other industries; Technology Data production capacity 10-30 pcs/min accuracy of labeling ±1mm range of application products outer diameter: 20-140mm height: 20-200mm range of application label length: 10-350mm width: 10-150mm power supply AC220V   50/60Hz  300W machine size (LxWxH) 900mmx600mmx450mm weight 33kg Bottle Labeling Machine Videos   Quick Details Type: Labeling Machine Condition: New Application: Apparel, Beverage, Chemical,…
