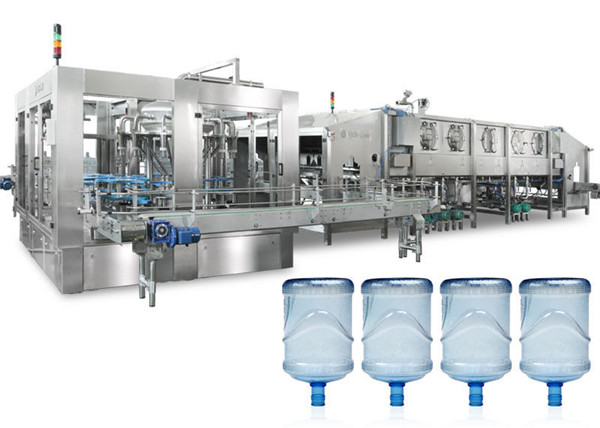

5 Gallon Bottle Filling Machine

Спецификације

Using stainless steel chain to drive, quality ensure Excellent formulation of control program with easy maintenance.

150B/H 5 gallon drinking water filling line
QGF120 barreled water production line

Summary

QGF120 type barreled water producing line is the core equipment in the 5 Gallon barreled drinking water producing line. It is the ideal equipment for mineral water, distilled water and purified water producing process. The machine is made of excellent stainless steel with the advantage of easilyrinsing and corruption-resistance. The main electrical parts adopt products with brand of SIEMENS and OMRON. Pneumatic parts adopt products with brand of AIRTAC. Both the inner and outer shower nozzle for washing barrel adopt the special technology equipment from American sprayer company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.

Главни технички параметар

Model: QGF-120

Filling Heads:1

Filling Volume:5 Gallon

Size of Barrel: 276×490mm

Capacity: 240 barrels per hour

Power supply: 380V, 50Hz, Max power consumption 4 KW . Power consumption is only 3.5kw while the machine works as each electrical part starts intermittently

Volume of using water: Filling 3T/H; Purified water washing 1T/H

Structure type: gear wheel and rack transmission intermittently;

Air pressure :0.5~0.6Mp,air consumption :350L/M

Overall dimension(mm): :2800*1100*1700

Disposal explanation

The whole set of equipment is imported abroad. The shower nozzle for washing is the technology products of American sprayer company

Intellectual management, controlled by OMRON micro-computer.

Siemens electrical element

AIRTAC pneumatic element

The whole set of equipment is made of stainless steel especially for food

Including system for automatic cap settling and cap transportation

Installment of automatic trouble protected device

Брзи детаљи

Тип: Машина за затварање
Стање: Ново
Вожени Тип: Електрични
Voltage: 220V/380V 50HZ/60HZ
Снага: 4КВ
Packaging Type: Other
Амбалажа: Дрво
Место порекла: Шангај, Кина (копно)
Бренд: НПАЦК
Dimension(L*W*H):2800MM*1100MM*1700
Weight: 600KG
Сертификација: ЦЕ
After-sales Service Provided: Engineers available to service mac
